Bosch ME7.4.5

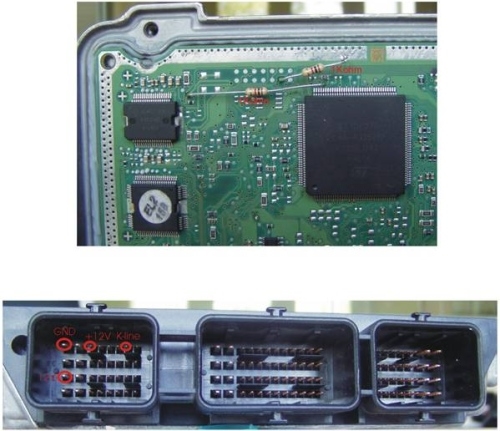

Connect the pins pokazanego na zdjęciu with two 1k ohm resistors, then follow the wiring diagrams below, depending on the cable you are using.
Connection using K4 Cable
| Opis | Pin | Kolor |
| +12V | Pin H2,F4 | Czerwony, Niebieski |
| Masa | Pin H4 | Szary |
| K-Line | Pin B4 | Zielony |
Connection using Bootloader Adapter 14P600BTLR and Kabel 14P600KT02
Bootloader Adapter 14P600BTLR
Kabel 14P600KT02
| Opis | Pin | Kolor |
| +12V | Pin H2,F4 | Czerwony |
| Masa | Pin H4 | Czarny |
| K-Line | Pin B4 | Zółty |
`
Revision 2023-03-31 © Szymon Ławniczak | www.GeoningSystem.pl
